Take absolute control of your healthcare facility’s biological safety and waste management expenses with the Addfield GM1300 General Medical Waste Incinerator, supplied, installed, and fully supported across Nigeria by qpHealthcare Technology Limited.

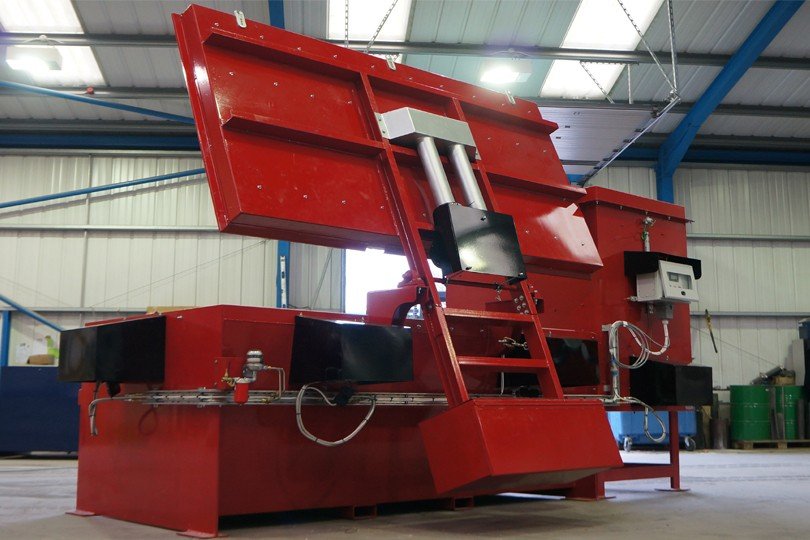

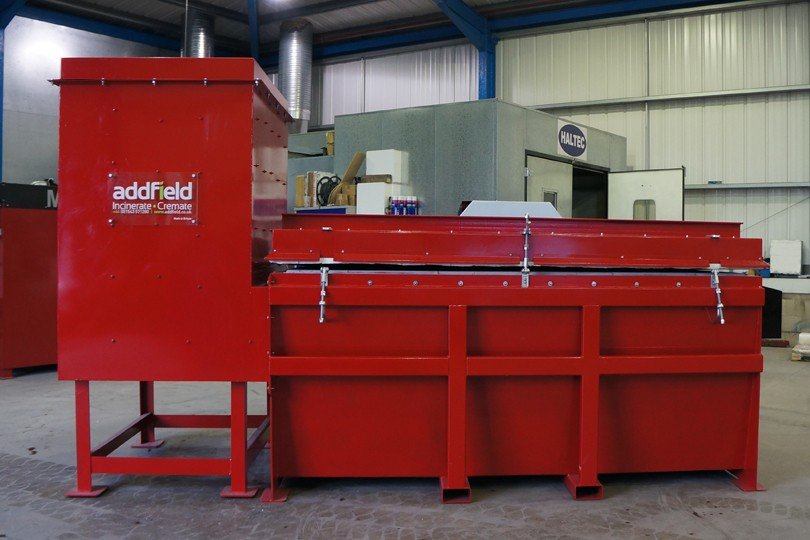

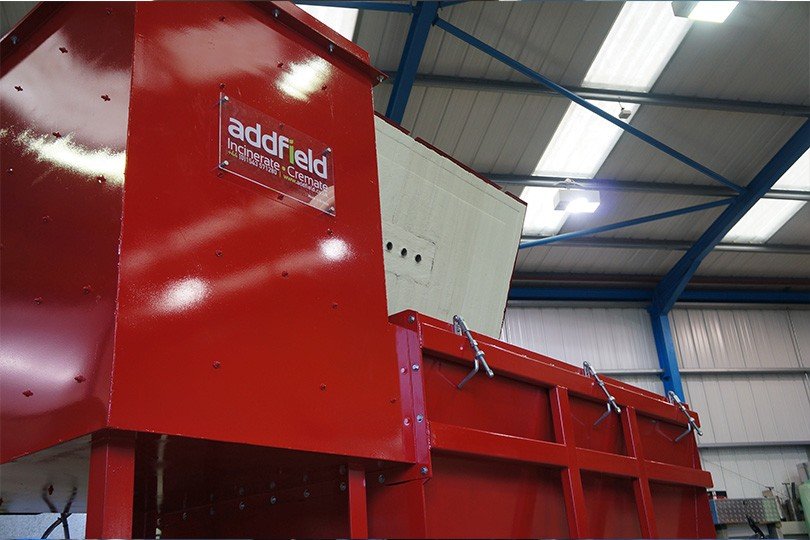

As a premium, top-loading thermal disposal system, the Addfield GM1300 is purpose-built to handle high volumes of mixed clinical waste. It easily eliminates yellow and red biohazard bags, surgical dressings, sharps, syringes, laboratory cultures, pharmaceutical leftovers, and anatomical waste. Its massive 2.3 m³ main chamber is specifically configured to fit bulky hospital materials like soiled bedding and complete clinical mattresses without requiring pre-cutting.
Industry-Leading Thermal Insulation & Fuel Savings

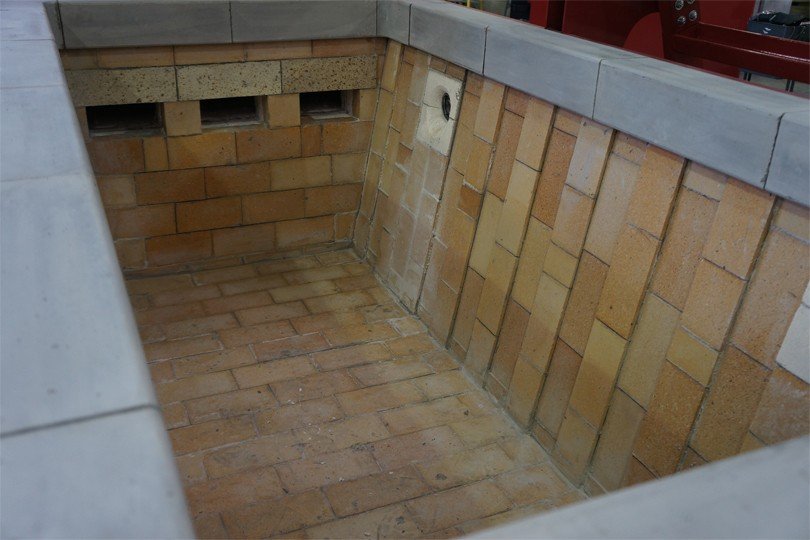

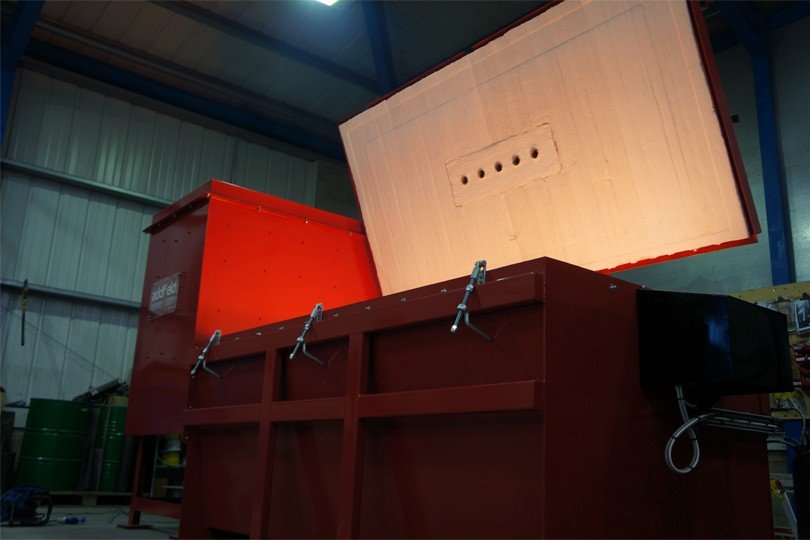

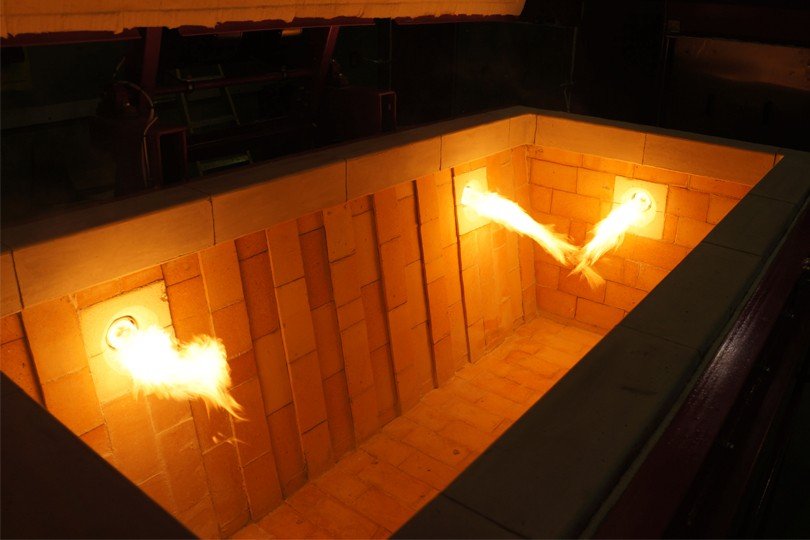

Addfield systems are globally renowned for their elite construction. The GM1300 features a multi-layered, steel-reinforced refractory lining built with high-grade alumina firebricks. This superior thermal design locks heat inside the chamber, meaning your burners turn off up to 40% faster than lesser-insulated alternatives. Paired with intelligent, temperature-controlled automatic ignition systems, the GM1300 lowers your overall fuel bills dramatically.
Guaranteed Bio-Security & Strict Environmental Compliance
The Addfield GM1300 guarantees eco-friendly operation that aligns with World Health Organization (WHO) and international environmental guidelines. Exhaust fumes are channeled into an integrated secondary afterchamber, where they are heated to 1,100°C for a minimum 2-second retention period. This rigorous process incinerates volatile organic compounds, completely eliminating toxic smoke, particulate matter, and odor before it leaves the stack. The unit is highly adaptable, running efficiently on Diesel, LPG, Natural Gas, or eco-friendly HVO biofuels based on your local infrastructure.
Safely eliminate bulk medical, clinical, and hazardous laboratory waste on-site.
- Daily Capacity: Processes up to 1,300 kg of clinical waste per day.
- Massive Volume: Generous 2.3 m³ loading chamber for bulk disposal.

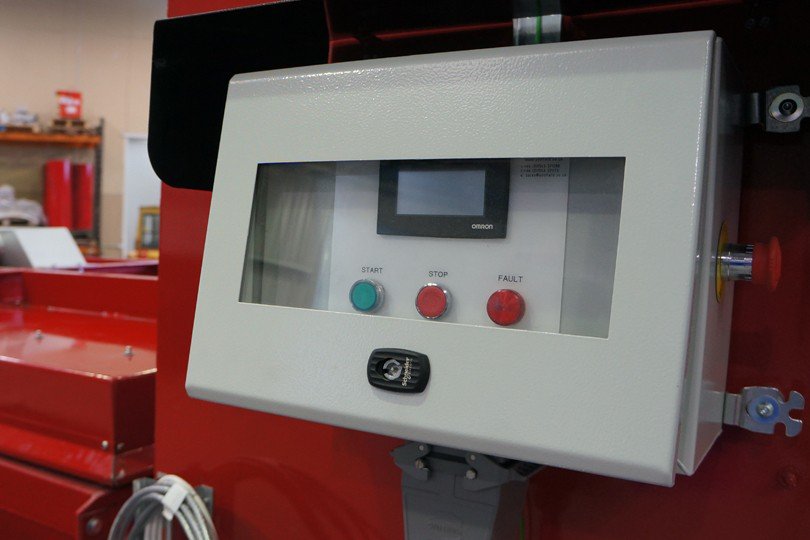

- Advanced Control: Features a user-friendly touch-screen PLC controller.
- Eco-Friendly Efficiency: Thick multi-layered insulation saves up to 40% on fuel costs.
- WHO Compliant: Secondary afterchamber delivers a 2-second gas retention time at 1,100°C for completely clean, smokeless emissions.
- Versatile Disposal: Ideal for red/yellow biohazard bags, sharps, surgical dressings, and mattresses.
_____________
Technical specifications for the Addfield GM1300 Medical Waste Incinerator define its precise structural dimensions, internal volume, and weight:
Weight
-
- Total Weight: Approximately 5.3 metric tonnes (5,300 kg) when empty.
External Dimensions (Footprint Required)
-
- Length: 4,365 mm (4.37 meters)
- Width: 2,886 mm (2.89 meters)
- Height: 2,095 mm (2.10 meters to the top of the main body chassis) up to 3,980 mm (3.98 meters) including standard primary components.
Internal Chamber Dimensions (Loading Capacity)
- Internal Length: 2,445 mm (2.45 meters)
- Internal Width: 1,100 mm (1.10 meters)
- Internal Height: 920 mm (0.92 meters)
- Total Internal Volume: 2.3 m³ (specifically designed to fit entire hospital mattresses, bulk clinical bags, and large bins without pre-chopping)
Question and Answer (FAQ Section)
Q: What specific types of clinical waste can the Addfield GM1300 destroy?
A: The Addfield GM1300 is rated to safely incinerate Type I, II, III, and IV medical waste. This includes hazardous bio-bags, needles, scalpels, sharps bins, laboratory plastics, anatomical waste, discarded pharmaceuticals, operational garments, and bulky mattresses.
A: The Addfield GM1300 is rated to safely incinerate Type I, II, III, and IV medical waste. This includes hazardous bio-bags, needles, scalpels, sharps bins, laboratory plastics, anatomical waste, discarded pharmaceuticals, operational garments, and bulky mattresses.
Q: Is the emissions output safe for nearby communities?
A: Yes. Because of its multi-stage design and advanced 2-second gas retention afterchamber operating at 1,100°C, the system destroys all harmful gases. The final discharge from the stack is completely clean, clear, and odorless, meeting strict international emission frameworks.
A: Yes. Because of its multi-stage design and advanced 2-second gas retention afterchamber operating at 1,100°C, the system destroys all harmful gases. The final discharge from the stack is completely clean, clear, and odorless, meeting strict international emission frameworks.
Q: Does qpHealthcare provide technical support for this heavy machinery?
A: Absolutely. As your trusted turnkey medical distributor, qpHealthcare Technology Limited manages the entire pipeline. We provide site assessment, safe delivery, physical installation, complete operator safety training, and routine preventative maintenance services.
A: Absolutely. As your trusted turnkey medical distributor, qpHealthcare Technology Limited manages the entire pipeline. We provide site assessment, safe delivery, physical installation, complete operator safety training, and routine preventative maintenance services.
